CAT#:
Sartorius

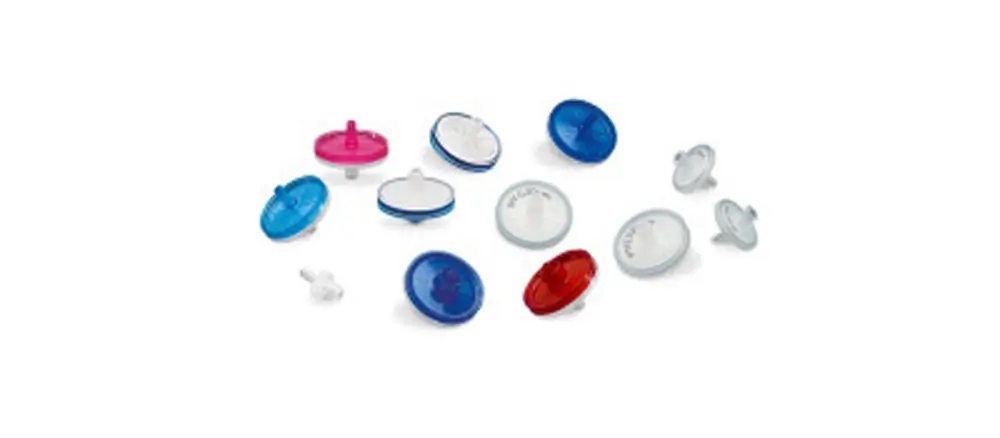

MiniSart® Cellulose Acetate Syringe Filters
0.45µm, 28mm, 500 Filters/Unit
0.2µm, 28mm, 500 Filters/Unit
0.2µm, 28mm, 50 Filters/Unit
3 product variations: View Options
Product Overview
- Non-sterile
- Bulk packs for less waste
- Can be sterilized with Gamma or ETO
- Glueable, e.g. to tubing
- Bidirectional use possible
Product Overview
- Sterile and ready-to-use
- Slightly asymmetric PES with a superior flow rate
- Low non-specific binding
- Bidirectional use possible
- PVC-free
Product Overview
- Version K is individually packed and sterilized by ethylene oxide (EO).
- Version GUK is individually packed and sterilized by gamma irradiation
- Bidirectional use possible
- Surfactant free cellulose membrane (pore size 0.2µm and 0.45µmm)
- Largest effective filtration area (EFA) of 6.2 cm2
- Low hold up volume
- Color-coded housing
Technical Specifications
| Application | Clarification and particle removal of aqueous solutions such as media, buffers and sera Clarification |
| Connector Inlet | Female Luer Lock |
| Connector Outlet | Male Luer Lock |
| Filter Diameter | ⌀ 28 mm |
| Filtration Area | 6.2 cm² |
| Filter Paper/membrane Color | Yellow |
| Flow Rate | ≥ 160 mL/min for water at 1 bar (14.5 psi) |
| Total Throughput | Up to 200 mL |
| Ph Range | 4.0 – 8.0 |
| Housing Material | Methacrylate butadiene styrene (MBS) |
| Membrane Material | Surfactant-free Cellulose Acetate (SFCA) |
| Maximum Allowable Working Temperature | 60 °C (140 °F) |
| Maximum Operating Pressure | 4.5 bar (65 psi) |
| Operating Pressure | 4.5 bar (65 psi) |
| Bubble Point | ≥ 2.0 bar (29 psi) with water |
| Burst Pressure | ≥ 7.0 bar (102 psi) |
| Pore Size | 0.45 µm |
| Wettability | Hydrophilic |
| Brand | Minisart® NML |
| Device Type | Syringe Filters |
| Pack Size | 500 |
| Packaging | Bulk packed |
| Sample Type | Aqueous |
| Delivery Condition | Non-Sterile |
| Sterilization Method | N/A |
| Hold-up Volume | ≤ 100 – 150 µL |
Technical Specifications
| Application | Sterile filtration and clarification of aqueous solutions Clarification Particle Removal |
| Application Area | Sterile filtration |
| Connector Inlet | Female Luer Lock |
| Connector Outlet | Male Luer Lock |
| Filter Diameter | ⌀ 28 mm |
| Filtration Area | 6.2 cm² |
| Filter Paper/membrane Color | Blue |
| Flow Rate | ≥ 60 mL/min for water at 1 bar (14.5 psi) |
| Total Throughput | Up to 200 mL |
| Ph Range | 4.0 – 8.0 |
| Housing Material | Methacrylate butadiene styrene (MBS) |
| Membrane Material | Surfactant-free Cellulose Acetate (SFCA) |
| Maximum Allowable Working Temperature | 60 °C (140 °F) |
| Maximum Operating Pressure | 4.5 bar (65 psi) |
| Operating Pressure | 4.5 bar (65 psi) |
| Bubble Point | ≥ 3.2 bar (46 psi) with water |
| Burst Pressure | ≥ 7.0 bar (102 psi) |
| Pore Size | 0.2 µm |
| Wettability | Hydrophilic |
| Brand | Minisart® NML |
| Device Type | Syringe Filters |
| Pack Size | 500 |
| Packaging | Bulk packed |
| Sample Type | Aqueous |
| Delivery Condition | Non-Sterile |
| Sterilization Method | N/A |
| Hold-up Volume | ≤ 100 – 150 µL |
Technical Specifications
| Application | Sterile filtration and clarification of aqueous solutions Clarification Particle Removal |
| Application Area | Sterile filtration |
| Connector Inlet | Female Luer Lock |
| Connector Outlet | Male Luer Lock |
| Filter Diameter | ⌀ 28 mm |
| Filtration Area | 6.2 cm² |
| Filter Paper/membrane Color | Blue |
| Flow Rate | ≥ 60 mL/min for water at 1 bar (14.5 psi) |
| Total Throughput | Up to 200 mL |
| Ph Range | 4.0 – 8.0 |
| Housing Material | Methacrylate butadiene styrene (MBS) |
| Membrane Material | Surfactant-free Cellulose Acetate (SFCA) |
| Maximum Allowable Working Temperature | 60 °C (140 °F) |
| Maximum Operating Pressure | 4.5 bar (65 psi) |
| Operating Pressure | 4.5 bar (65 psi) |
| Bubble Point | ≥ 3.2 bar (46 psi) with water |
| Burst Pressure | ≥ 7.0 bar (102 psi) |
| Pore Size | 0.2 µm |
| Wettability | Hydrophilic |
| Brand | Minisart® NML |
| Device Type | Syringe Filters |
| Pack Size | 50 |
| Packaging | Single blister packed |
| Sample Type | Aqueous |
| Delivery Condition | Sterile |
| Sterilization Method | Gamma irradiation |
| Hold-up Volume | ≤ 100 – 150 µL |
Technical Documents
Technical Documents
- Laboratory Filtration Products Catalog
- Minisart® Chemical Compatibility Guide
- Instructions for Use Minisart® NML, SRP & HY Sartorius Syringe Filters for Filtration Applications and Sterilization of Air
- Instructions for Use Minisart® High Flow | NML | Air | HY | Acticosart Sartorius Syringe Filters for Liquid Filtration and Venting
Technical Documents
- Minisart® Syringe Filters — The Easy Choice – Clean and Safe
- Laboratory Filtration Products Catalog
- Minisart® Chemical Compatibility Guide
- Instructions for Use Minisart® NML, SRP & HY Sartorius Syringe Filters for Filtration Applications and Sterilization of Air
- Instructions for Use Minisart® High Flow | NML | Air | HY | Acticosart Sartorius Syringe Filters for Liquid Filtration and Venting
Detailed Description
Bidirectional use possible. Surfactant free cellulose membrane (pore size 0.2µm and 0.45µmm). Largest effective filtration area (EFA) of 6.2 cm2. Low hold up volume. Color-coded housing.
3 Product Options
Catalog Number:
60-900
List Price:
$1701.56
Your Price:
$1458.47
Specifications:
| Configuration | 500 Pack, Non-Sterile |
| Description | 0.45µm, 28mm |
| Qty/Unit | 500 Filters/Unit |
Catalog Number:
60-899
List Price:
$1701.56
Your Price:
$1458.47
Specifications:
| Configuration | 500 Packs |
| Description | 0.2µm, 28mm |
| Qty/Unit | 500 Filters/Unit |
Catalog Number:
60-898
List Price:
$293.16
Your Price:
$251.29
Specifications:
| Configuration | Single, 50 Packs |
| Description | 0.2µm, 28mm |
| Qty/Unit | 50 Filters/Unit |
!
